NSM WEAR PM
DATA SHEET
Typical Composition
| C | Cr | W | Mo | V |
|---|---|---|---|---|
| 1.15 | 7.50 | 1.00 | 1.60 | 2.40 |
NSM WEAR PM is an air-hardening powder metallurgy tool steel, heat treatable to HRC 60-65. The original conventionally melted NSM WEAR PM was designed as an upgrade to A-2 and D-2, for better wear resistance, greater toughness and higher attainable hardness. NSM WEAR PM was introduced as a way to make the conventionally melted version easier to machine and more resistant to chipping. Compared to the chemistry of D-2, (D-2 = 1.55% carbon, 11.5% chromium, 0.8% vanadium, and 0.9% molybdenum), NSM WEAR PM has less carbon and less chromium, but more vanadium and tungsten. The overall carbide content of NSM WEAR PM is less than D-2 which helps make it tougher than D-2. NSM WEAR PM’s higher attainable hardness results from the fact that it contains sufficient tungsten and molybdenum to cause a secondary hardening response. Finally, NSM WEAR PM tempers at a higher range (900-1050°F) than D2 (400-600°F), so it is more compatible with a wide variety of surface treatments.
Mechanical Properties
Wear Resistance- NSM WEAR PM will offer better wear resistance then that of the AISI D-2, approaching AISI M-2.
Impact Toughness- NSM WEAR PM has greater toughness than the AISI D-2 approaching the AISI A-2.
NOTE: Lowering the hardening temp. reduces the grain size and increases toughness.
| Heat Treatment Austenit. Temp. |
HRC | Impact Toughness | Wear Resistance Adhesive |
|
|---|---|---|---|---|
| Ft-lb | (J) | |||
| NSM WEAR PM 1950°F (1065°C) |
62 | 35 | (46) | 6–7 |
| S7 1750°F (955°C) |
57 | 125 | (165) | 1 |
| A2 1750°F (955°C) |
60 | 40 | (53) | 2–3 |
| D2 1850°F (1010°C) |
60 | 21 | (28) | 3–4 |
| M2 2050°F (1025°C) |
62 | 20 | (27) | 8–10 |
Thermal Treatments
Annealing: Heat to 1550-1650°F (840-900°C), hold 2 hours, slow cool 50°F (25°C) per hour to 1200°F (650°C).
Annealed Hardness: About BHN 225/255.
Stress Relieving
Annealed Parts: Heat to 1100-1300°F (595-705°C), hold 2 hours, then furnace cool or cool in still air.
Hardened Parts: Heat to 25°F (15°C) below the original tempering temperature, hold 2 hours, then furnace cool or cool in still air.
Hardening
It is customary to use two furnaces: one furnace to preheat and the second furnace to austenitize. This ensures that the transition from the pre-heat temperature to the austenitizing temperature occurs fairly rapidly.
Preheat: Heat to 1550-1600°F (840-870°C), Equalize.
Austenitize: 1850-2050°F (1010-1120°C), Hold time at temperature 20-45 minutes.
Quench: Air or positive pressure quench (2 bars minimum) to below 125°F (50°C). Salt bath treatment, if practical will ensure the maximum attainable toughness for a given
hardening treatment.
Temper: 900-1050°F (480-565°C). Double tempering is mandatory, and triple tempering is recommended. Cool to room temperature in between tempers. Temper 2 hours
minimum each time or at least 1 hour per inch (25mm) of thickness for sections over 2” (50mm) thick.
Size Change: Approx. +0.15%.
Recommended Heat Treatment: For the best combination of toughness and wear resistance, austenitize at 1950°F (1065°C). Temper 3 times at 1000°F (540°C).
Aim hardness: HRC 62 Higher austenitizing temperatures can be used to obtain higher hardness, at a slight decrease in impact resistance. The lower austenitizing temperatures
provide the best impact toughness.
Note: Properties shown throughout this data sheet are typical values. Normal variations in chemistry, size and heat treat conditions may cause deviations from these values.

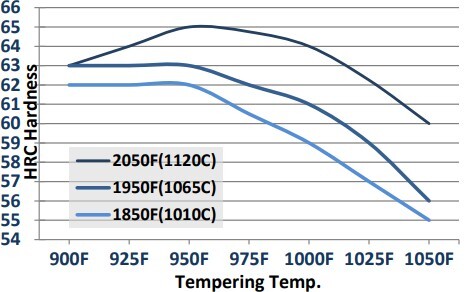

| Tempering Temp. | 1850°F (1010°C) | 1950°F (1065°C) | 2050°F (1120°C) |
|---|---|---|---|
| As Quenched | 63–65 | 63–65 | 62–64 |
| 900°F (480°C) | 61–63 | 62–64 | 61–63 |
| 950°F (510°C) | 61–63 | 62–64 | 64–66 |
| 1000°F (540°C) | 57–59 | 60–62 | 63–65 |
| 1025°F (550°C) | 56–58 | 58–60 | 61–63 |
| 1050°F (620°C) | 54–56 | 58–60 | 61–63 |
| Minimum Time at Aust. Temp. | 45 min. | 30 min. | 20 min. |
Surface Treatments
Because of its high tempering temperatures (900-1050°F) NSM WEAR PM is suitable for nitriding, PVD coating or similar surface treatments. It will retain its hardness after such processes, making it a more suitable substrate than D-2.
NOTE: CVD coating processes are generally performed at temperatures which exceed the critical temperature and may result in nonpredictable dimensional distortion.
Machinability
Machinability of NSM WEAR PM in the annealed condition is similar to D2 but grindability will be slightly better. Similar grinding equipment and practices are acceptable. “SG” type alumina wheels or CBN wheels have generally given the best performance.
This data sheet is for informational purposes only. Alloy characteristics are subject to change due to chemical composition and/or processing. We do not certify the material’s suitability for specific applications.
Niagara Specialty Metals | 12600 Clarence Center Road, Akron, NY 14001
